Concealed Hinge Jig Kit - Compatible with OTLAV™ INVISACTA® IN570

Name: Concealed Hinge Jig Kit - Compatible with OTLAV™ INVISACTA® IN570
Brand: 3DJigs.com
SKU: CH-PT-570-WH-V1
Price: 50.00 CAD
Availability: InStock

$50.00 CAD

Sale Sold out

Shipping calculated at checkout.

Quantity

About this jig:

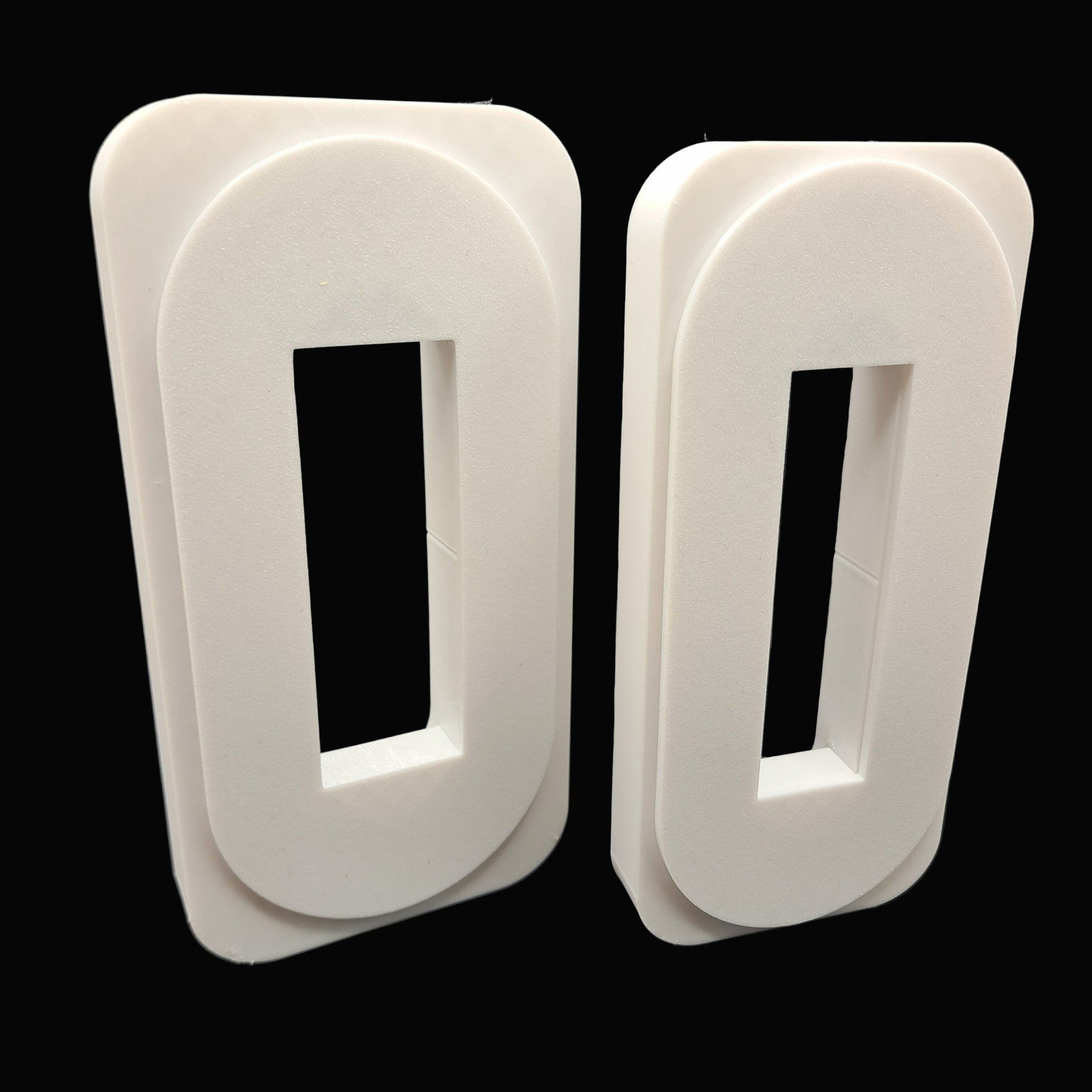

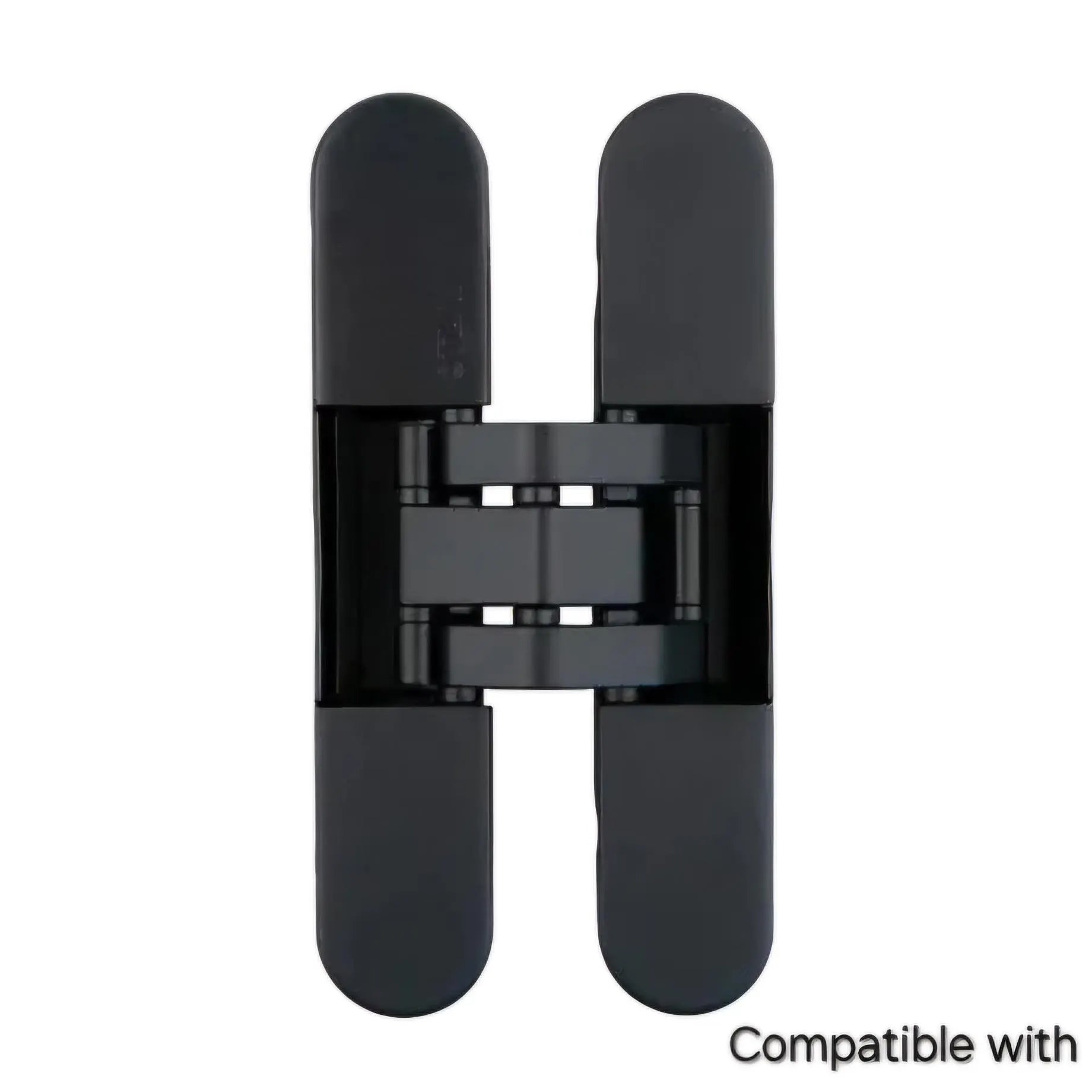

Concealed Hinge Jig Kit compatible with OTLAV™ INVISACTA® IN570 hidden/concealed hinges.

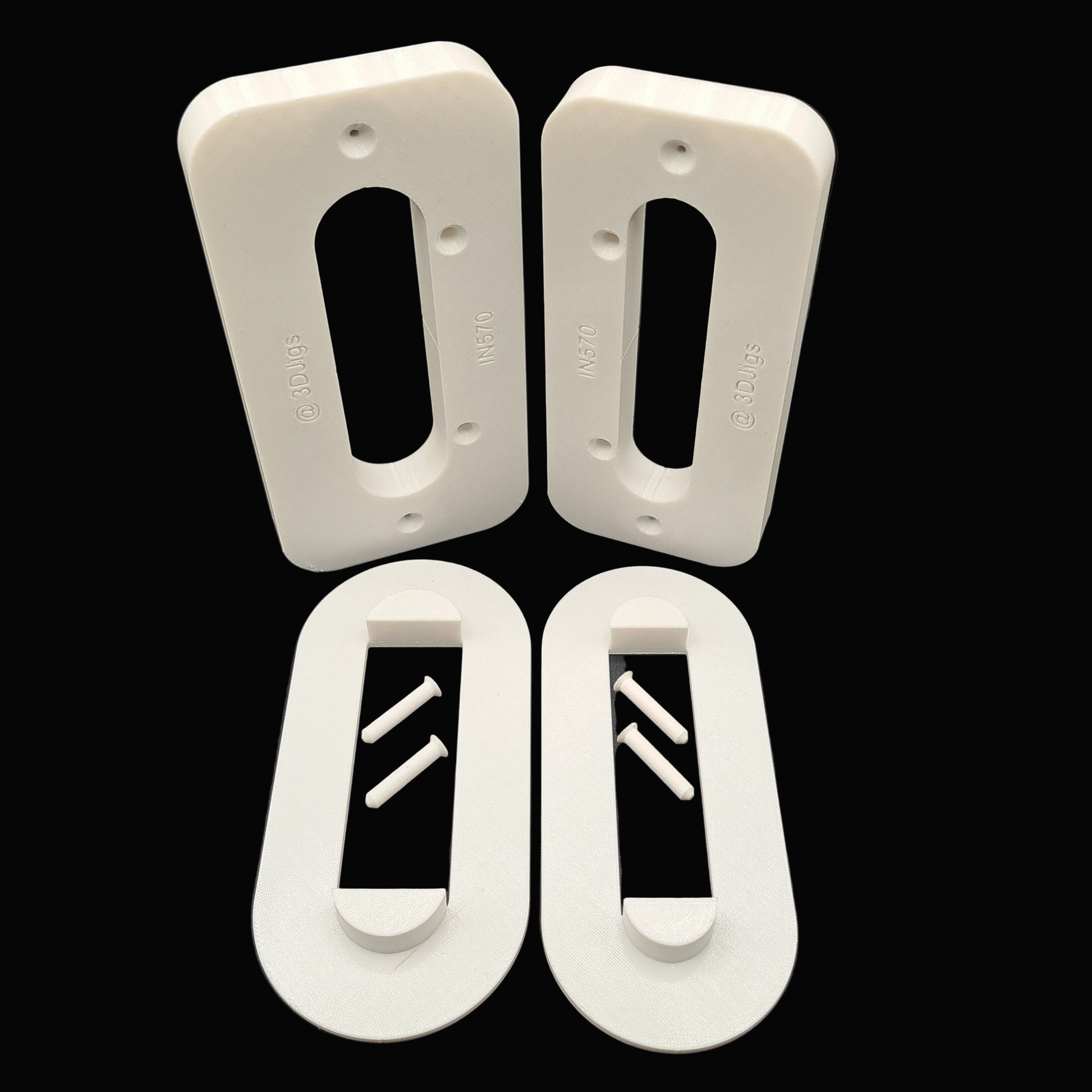

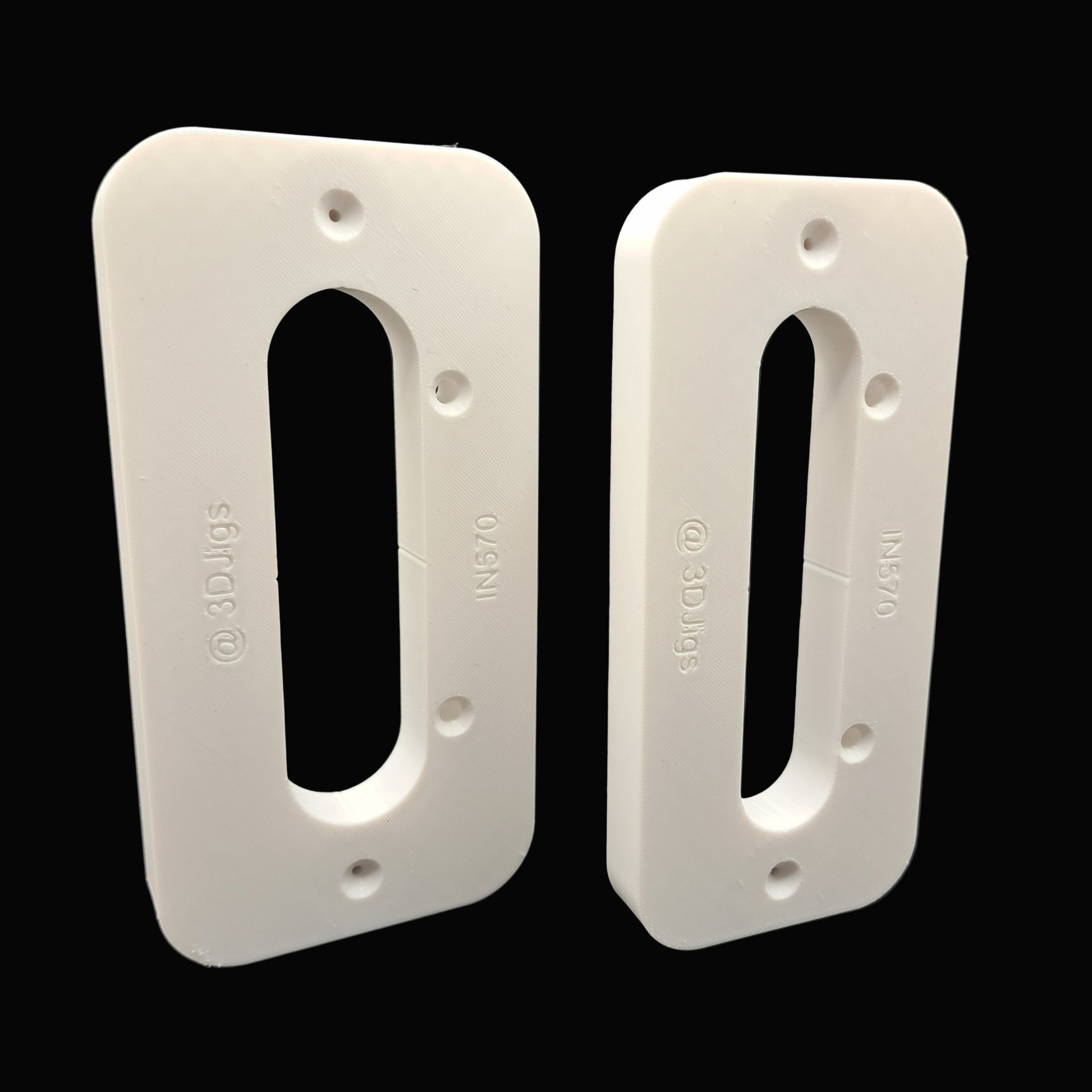

Designed for smooth installation, one jig is for the door, the other jig is for the jamb.
Recommended bushing guide size is 5/8 inch & router bit is 1/2 inch.
Made in Canada.

⚠️ Critical Setup Requirement

Use a Router Bushing Guide: This jig is specifically designed and recommended for use with a standard router bushing guide. > Do not use a router bit with a ball-bearing guide. The high-speed friction of a metal ball bearing will generate enough heat to melt the plastic template and ruin the jig. Using a bushing ensures a smooth, professional-quality cut while keeping your template in perfect condition.

Product Disclaimer:
OTLAV™ INVISACTA® is a registered trademark of their respective owner.
This product is not affiliated with, endorsed by, or sponsored by OTLAV™/INVISACTA®.

View full details

About Us

We create carpentry jigs -

from scratch

Our jigs help you complete installations quickly, accurately & consistently—without constant measuring or guesswork.

At 3Djigs.com, we offer trim carpenters intelligent jig solutions with our custom built, 3D-printed finish carpentry jigs- designed to enhance efficiency, precision & achieve perfection on every hardware install.

We offer a variety of jigs for use with all brands of tools, materials & hardware. Designed for use by professional finish carpenters- to save you time, money & labor costs on the job- for a perfect finish every time, without costly mistakes.

Every jig is designed and built in Toronto, Canada by a professional Custom Trim Carpenter with over 20 years of hands-on experience. Our jigs are tried & tested on the job, ensuring that all of our jig designs are true to form!

Shop Compatibility & Trademark Disclaimer:

All products sold in this shop are independent aftermarket tools and accessories designed to assist with the installation or use of certain commercially available products.

Any brand names, trademarks, or product names referenced in this shop are used strictly for the purpose of describing compatibility. These trademarks are the property of their respective owners.

This shop and its products are not affiliated with, endorsed by, sponsored by, or approved by any of the referenced brands. No original manufacturer products are included unless explicitly stated.

Compatibility references are provided solely to help customers determine proper fit and intended use.
